Chemical Compatibility & Media Suitability
High purity, corrosion-resistant fluoropolymer tubing (PTFE, FEP, PFA, PVDF) for aggressive chemical and pharmaceutical lines.
Operating Temp
-200°C to +260°C
Capacity / Scope
1/8 to 2 Inch Diameters
Design Standard
FDA 21 CFR / USP Class VI
Testing Protocol
100% Pressure Tested

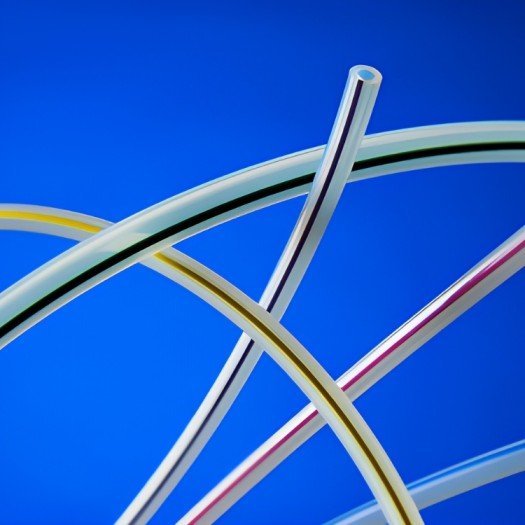

Extruded High-Purity PTFE, FEP & PFA Flexible Chemical Tubing
Engineering Architecture & Construction
1. Broadest Temperature Capability (-200°C to +260°C)
Maintains extreme chemical inertness and mechanical flexibility across cryogenic and high-temperature thermal cycling.
2. Ultra-Smooth Non-Stick Inner Bore
Lowest coefficient of friction of any solid material prevents protein binding, chemical stagnation, and micro-particle contamination.
Technical Specifications & Design Parameters
| Engineering Parameter | Standard Specification |
|---|---|
| Polymer Grades | PTFE (Polytetrafluoroethylene), FEP, PFA (Perfluoroalkoxy), PVDF |
| Size Range | Inner Diameters from 1.0 mm (1/16 Inch) up to 50 mm (2 Inch) |
| Working Pressure | Up to 30 bar depending on wall thickness and temperature |
| Regulatory Compliance | FDA 21 CFR 177.1550 / USP Class VI / RoHS Compliant |
| Clarity Options | Optically clear transparent (FEP/PFA) or milky white (PTFE) |
| Packaging | Coiled continuous lengths on spools (50m, 100m, 500m) |
Target Industrial Sectors
Pharma & Biotech
Aseptic Fluid Transfer Lines
Semiconductor
Chemical Dosing & UPW Lines
Chemical Labs
Analytical Chromatography Tubing
Food Processing
High Purity Beverage Lines
Solar Cell Mfg
Acid Etching Chemical Supply
Medical Devices
Biocompatible Liquid Conduits
