Chemical Compatibility & Media Suitability
Anti-skid molded and pultruded FRP walkway gratings, stair treads, and catwalk platforms for chemical plants.
Operating Temp
-40°C to +80°C
Capacity / Scope
Standard & Custom Panels
Design Standard
OSHA / ASTM E84
Testing Protocol
Heavy Forklift Load Rated
Anti-Skid Quartz Grit FRP Molded Gratings & Chemical Catwalk Platforms
Engineering Architecture & Construction
1. Permanent Anti-Skid Quartz Grit Top
Embedded industrial quartz grit surface provides exceptional slip resistance (R13 rating) even when wet with oil, acid, or water.
2. Bi-Directional Load Bearing Strength
Molded square mesh distribution carries heavy point loads and wheel traffic without permanent deflection or weld fatigue.
Technical Specifications & Design Parameters
| Engineering Parameter | Standard Specification |
|---|---|
| Panel Sizes | 1000 x 3000 mm, 1220 x 3660 mm (4x12 ft), custom fabricated shapes |
| Mesh Thicknesses | 25 mm, 30 mm, 38 mm, 50 mm mesh depth |
| Surface Types | Embedded Quartz Grit Top, Concave Meniscus Anti-Skid, or Solid Top |
| Resin Selection | Orthophthalic, Isophthalic, Vinyl Ester, Fire-Retardant |
| Load Capacity | Pedestrian walkway, vehicle wheel traffic, and heavy industrial plant duty |
| Fasteners Supplied | SS316 M-Clips, J-Clips, and C-Clips for secure structural framing |
Target Industrial Sectors
Chemical Catwalks
Tank Top Inspection Walkways
Pickling Trenches
Acid Pit Cover Gratings
ETP Plants
Clarifier Bridge Walkways
Pharma Facilities
Cleanroom Utility Walkways
Offshore & Marine
Splash-Zone Platforms
Food Processing

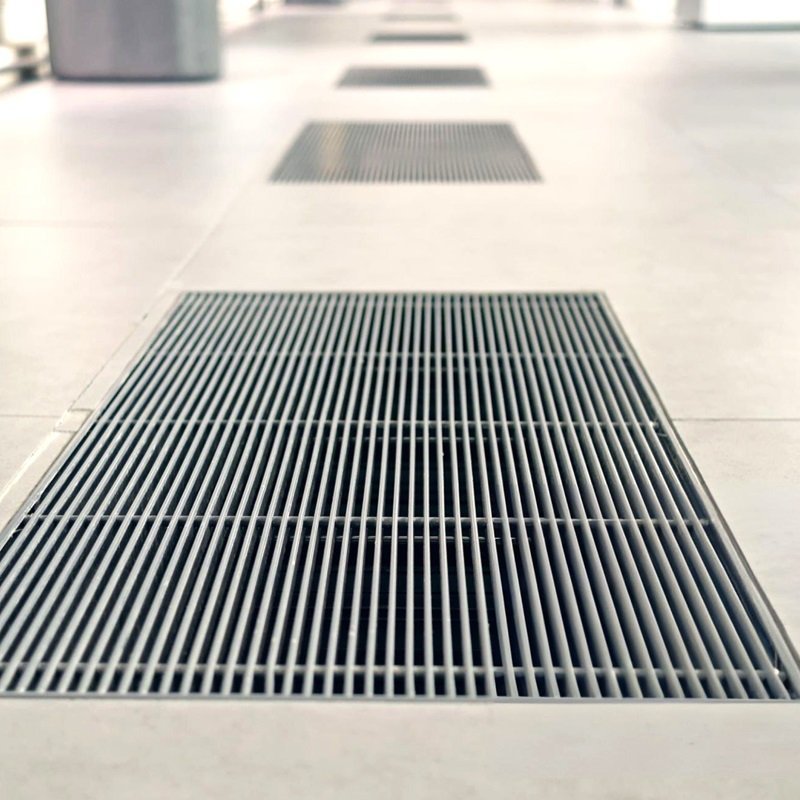

Hygienic Drainage Trench Covers
