Chemical Compatibility & Media Suitability

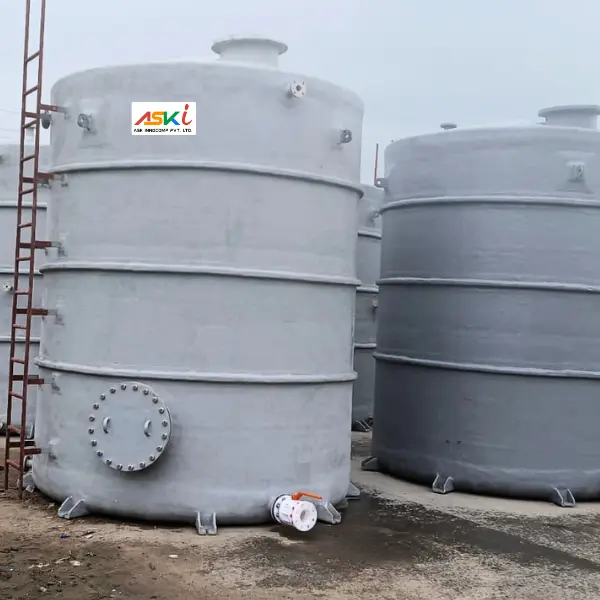

High Density Polyethylene (HDPE) dual laminate chemical storage tanks combining chemical resistance with high mechanical strength.
Operating Temp
-30°C to +75°C
Capacity / Scope
1 KL to 120 KL
Design Standard
DVS 2205 / ASTM D3299
Testing Protocol
20kV Spark Tested
High-Density Polyethylene Liner with High-Tensile Structural Fiberglass Composite
Engineering Architecture & Construction
1. Tough HDPE PE100 Chemical Barrier
High-density polyethylene offers high impact resistance, smooth anti-scaling surface, and excellent chemical resistance at economical cost.
2. Filament-Wound Structural Reinforcement
Multi-axial glass fiber structural laminate carries hydraulic hoop stress, eliminating wall deformation under continuous hydrostatic pressure.
Technical Specifications & Design Parameters
| Engineering Parameter | Standard Specification |
|---|---|
| Internal Liner | High Density Polyethylene (HDPE PE100 / PE80) 4.0 - 8.0 mm |
| Structural Reinforcement | Isophthalic / Vinyl Ester Resin with E-Glass Mat |
| Operating Temperature | -30°C to +75°C continuous service |
| Corrosion Life | Zero rust, zero painting required, over 30 years operational life |
| Welding Standard | Automated Hot Gas Extrusion Welding per German DVS 2207 |
| Quality Control | 100% Spark Leak Inspection across all weld seams + Hydrostatic test |
Target Industrial Sectors
Water Treatment
Brine & Coagulant Storage
Chemical Plants
Dilute Acid & Alkali Storage
Electroplating
Rinse Water & Chemical Holding
Agriculture
Liquid Fertilizer Containment
Textile Mills
Detergent & Salt Solution Tanks
ETP Plants
Equalization & Sump Tanks
