Chemical Compatibility & Media Suitability
High-strength FRP I-beams, C-channels, angles, square tubes, and flat bars for corrosive structural framing.
Operating Temp
-40°C to +90°C
Capacity / Scope
Full Structural Range
Design Standard
ASTM E84 Class 1 / IS 6746
Testing Protocol
Zero Maintenance
High-Strength Pultruded Fiberglass Structural I-Beams, Channels & Angle Sections
Engineering Architecture & Construction
1. High Glass-Fiber Fiber Density (>65%)
Continuous pultrusion aligns high-density roving and continuous filament mats for exceptional longitudinal and transverse structural stiffness.
2. Class 1 Flame Retardancy & UV Protection
Formulated with flame-retardant vinyl ester or isophthalic resin matrix and UV inhibitors, certified to ASTM E84 Class 1 flame spread (<25).
Technical Specifications & Design Parameters
| Engineering Parameter | Standard Specification |
|---|---|

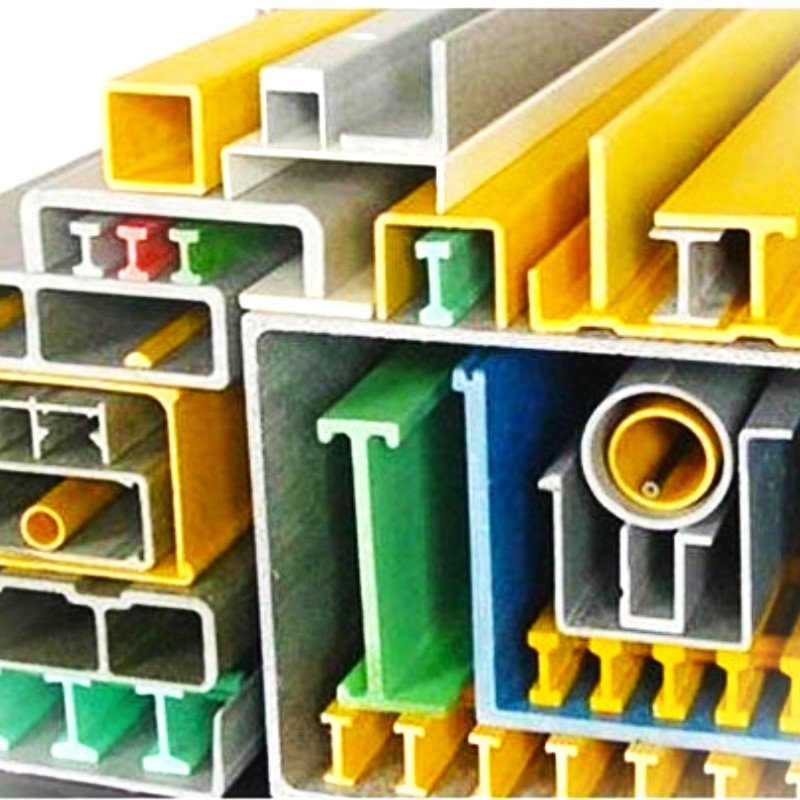

| Section Geometries | I-Beams, H-Beams, C-Channels, Equal Angles, Square/Rectangular Tubes, Rods |
| Dimensional Range | Direct drop-in replacements for standard structural steel ISMC & ISMB sections |
| Resin Matrices | Isophthalic Polyester, Premium Vinyl Ester, Fire-Retardant Phenolic |
| Tensile Modulus | > 20,000 MPa (High flexural and compressive strength) |
| Dielectric Insulation | High electrical breakdown resistance (Non-sparking & non-conductive) |
| Color Options | Safety Yellow, Industrial Slate Grey, or Custom Resin Tinting |
Target Industrial Sectors
Chemical Walkways
Catwalk & Platform Framing
Scrubber Supports
Tower Support Framework
Cooling Towers
Structural Frame Casing
Water Treatment
Bridge & Trench Walkway Framing
Fertilizer Plants
Conveyor Support Structures
Offshore Platforms
Marine Catwalk Structures
