Chemical Compatibility & Media Suitability
Turnkey packed bed wet scrubbers, gas absorption towers, and air pollution control systems for neutralizing toxic industrial acid fumes.
Operating Temp
Up to 90°C Gas Temp
Capacity / Scope
500 to 50,000 CFM
Design Standard
CPCB / SPCB Norms
Testing Protocol
99%+ Removal Efficiency

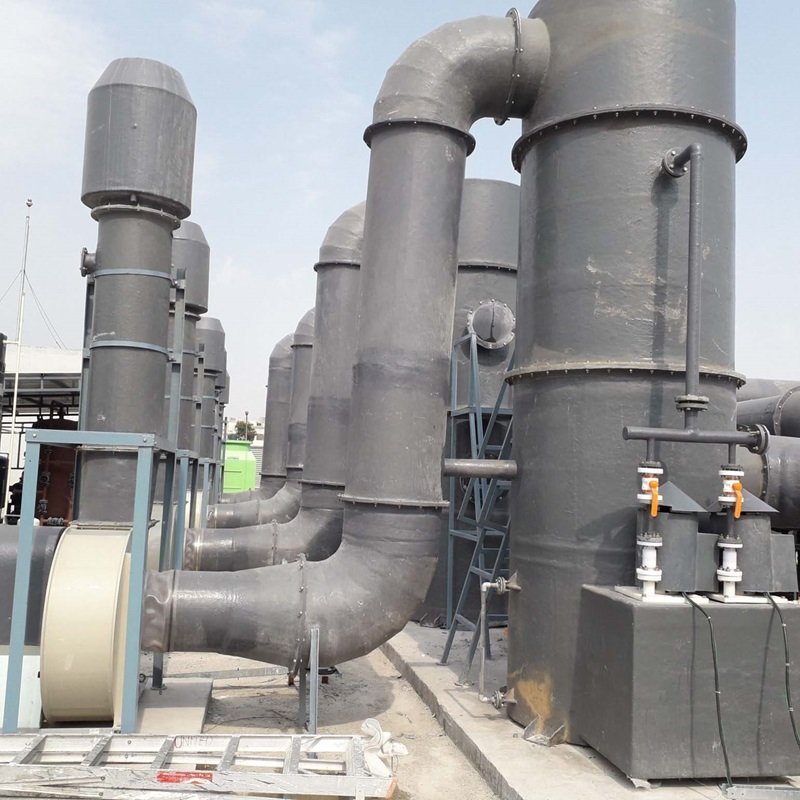

High-Efficiency FRP Wet Scrubber Absorption Tower with Integrated Pump & Chemical Dosing
Engineering Architecture & Construction
1. High Mass Transfer Packed Bed
Pall ring / Tellerette packing provides maximum surface area contact between rising corrosive gas fumes and downward scrubbing liquid.
2. Multi-Stage Mist Elimination
Chevron chevron-blade and wire mesh mist eliminators prevent droplet carryover, guaranteeing dry, emission-compliant exhaust release.
Technical Specifications & Design Parameters
| Engineering Parameter | Standard Specification |
|---|---|
| Airflow Capacity | 500 CFM to 50,000 CFM (850 to 85,000 m³/h) |
| Scrubber MOC | Vinyl Ester Resin FRP or Dual Laminate PPH+FRP / PVDF+FRP |
| Removal Efficiency | Up to 99.5% for soluble acid fumes & toxic vapors |
| Packing Media | Polypropylene / PVDF Pall Rings, Raschig Rings, Tellerettes |
| Spray Nozzles | Non-clogging Full Cone PVDF / PP Spiral Spray Nozzles |
| Instrumentation | Online pH controller, automatic dosing pump, differential pressure gauge |
Target Industrial Sectors
Chemical Plants
Acid Exhaust Fume Capture
Galvanizing Lines
HCl Pickling Fume Scrubbing
Electroplating
Cyanide & Acid Gas Scrubbing
Pharmaceuticals
Reactor Vent Gas Treatment
Foundries & Steel
Furnace Gas Neutralization
Fertilizer Plants
Ammonia & Fluoride Scrubbing
